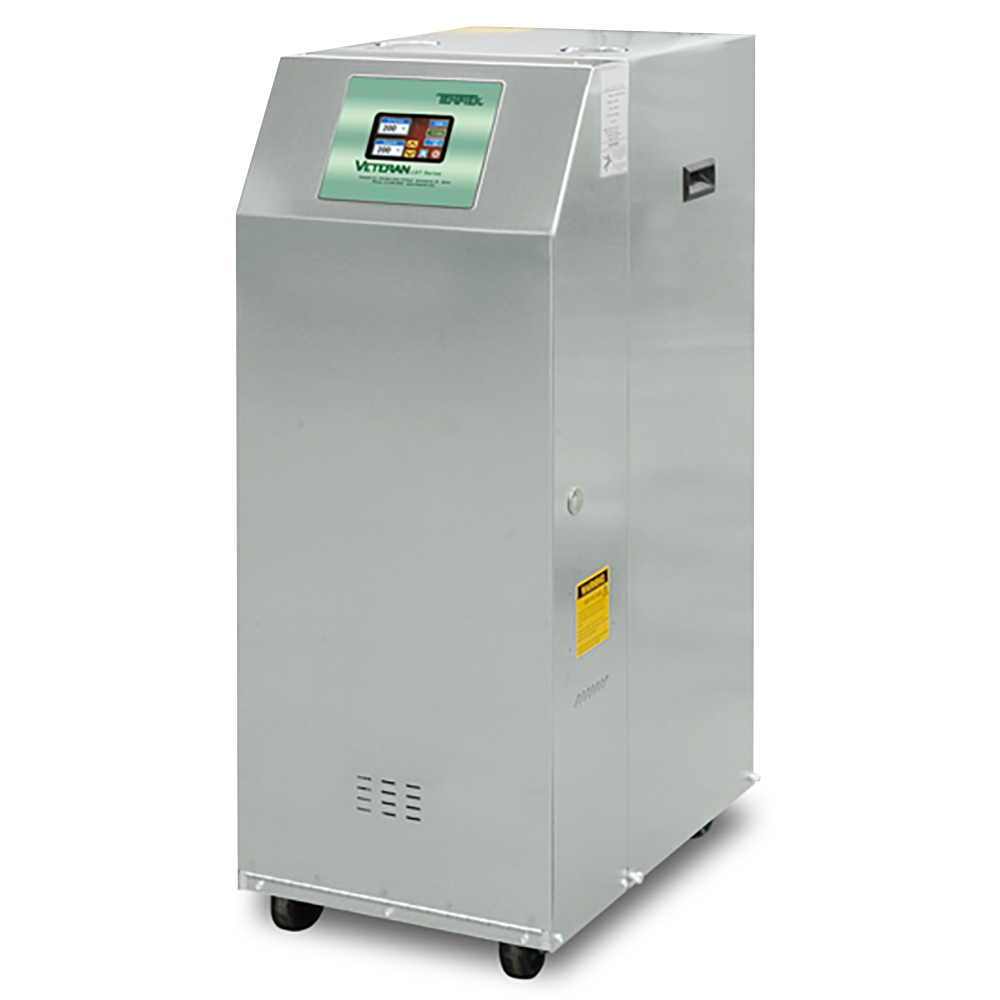

Temptek Veteran 24kw Circulating Water Heater

$4,500.00 – Sold Out

Process Pump
High flow centrifugal pump and motor in one assembly
3 horsepower
Custom designed pump casing & impeller generates high flow rate
Turbulence generated by high flow rates improves heat transfer and promotes better part quality
Horizontal orientation and internal seal area flush extends pump seal life
Integral fluid bypass reduces performance problems associated with low flow
Open drip proof motor
Electrical
DIN rail mounted UL approved finger safe electrical components
Color coded & numbered wires are easy to identify for service purposes
Control instruments are plug to plug for easy removal for service
IEC motor starter with overload, phase loss & short circuit protection
Rugged IEC mechanical heater contactor
Cabinetry
Stainless steel electrical cabinet & enclosure panels
3" casters for portability

Heater
24kw
Low water density for long operational life
High temperature rated stainless steel sheath minimizes damage from dissolved chemicals in water
Flange mounted for easy service
Cooling Valve
Precision control solenoid cooling valve
Pulsed cooling, controlled by the microprocessor instrument
For precise temperature control
System Limits
Discreet high temperature limit switch
Control circuit fuse
Process pressure relief valve
Water supply switch prevents operation when water supply is below 55 psi
Pressure Gauges
Provides full process performance information
To process
From process
